RG11 Broadband Coaxial Cable from China manufacturer

Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: RG11 Cable

Production Capacity: 8000 Km/month

Delivery Date: 10-15 Days

Specification: FPE

Certificate: Quality Management System

Means of Transport: FOB,CIF,CNF

Packing: Carton,Roll,Wooden reel

Brand Name: Wu Yue

Function: CATV,MATV,CCTV,Satellite TV

Export Area: Developing Country

Inner Conductor, Fomed PE, Al-Foil, Braiding Wires, Jacket PVC

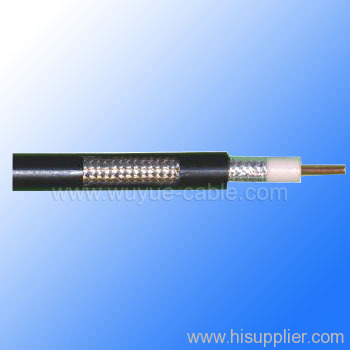

Coaxial Cable (RG11)

1) The reference standard.

1.63mmBC(or TC,CCS,CCA) + 7.1mmFoamed PE + Al-foil shield(bonded) + 65% AL Braiding + 10.1mmPVC

2)The details of note.

a) Center conductor: Tinned Copper, Bare Copper, Copper Clad Steel, and Copper Clad Aluminum are available;

b) Al-foil: Non-bonded Al-foil, bonded Al-foil, double non-bonded Al-foil, and double bonded Al-foil are available;

c) Braiding wire: Al-Ma alloy, Bare Copper, Tinned Copper, Copper Clad Steel, Copper Clad Aluminum,Tinned Copper Clad Steel, Tinned Copper Clad Aluminum are available;

d) Braiding wire diameter: 0.10mm,0.12mm,0.13mm,0.14mm,0.15mm,0.16mm are available;

e) Braiding net: 32,48,64,72,80,96,120,128,144 and more available;

f) Braiding coverage: Between 30%--97% ara available;

g) PVC jacket of Flame retardant, UV, or UL available.

3) According to the requirments of customers, we can also offer the following materials.

a) Jelly between the Braiding and PVC jacket.

b) Steel Messenger

c) Plus2 Wires

d) Composite cable include LAN cable,Telephone cable,etc(e.g. UTP-Cat-5e-4pair).

Electrical Characteristics

Impedance: 75±3Ω

Velocity of Propagation: 85%

Capacitance: 52 pF/m

Return Loss: 20 dB

Attenuation [@68°F,(20°C)] dB/100meters

5MHz:   1.25dB         400MHz: 8.53dB
55MHz: 3.15dB        450MHz: 9.02dB
83MHz: 3.87dB        500MHz: 9.51dB
187MHz: 5.74dB       550MHz: 9.97dB
211MHz: 6.23dB       600MHZ: 10.43dB
250MHz: 6.72dB       750MHZ: 11.97dB
300MHz: 7.38dB       865MHZ: 13.05dB
350MHz: 7.94dB      1000MHZ: 14.27dB
Attention:

According to the requirments of customers,we can also offer the other Electrical Characteristics.

Packing(Mainly according to the requirments of customers):

A.General Packing lengths: 30,100,200,305m/roll,100,200,300yard/roll.

B.General packing: Wooden reel,Carton box,pull out box,pallet,etc. are available.

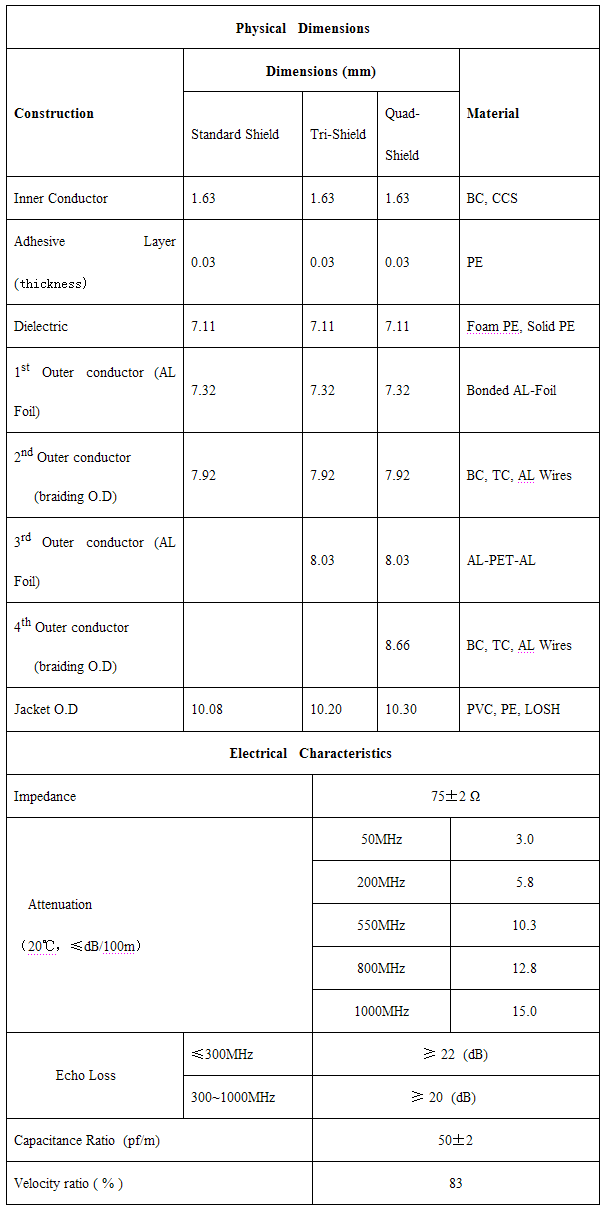

Another Reference Chart as follows
